Jacketed Reactors

Jacketed Reactors

Capacity: 20 Liters to 50,000 Liters

MOC: Hastelloy, SS 316, SS 316L, SS 304, SS 304L, CS, CS with PFA/PTFE/HALAR Coating, CS with Hastelloy Bonding

Manufacturing Standards: ASME, IS, CEN, BiS, API & other approved standards

Certifications: CE, PED, Dosh, ATEX, SASO

Features: Energy Efficient Agitator Drives – Approved by renowned consultants and third-party inspection agencies

Overview

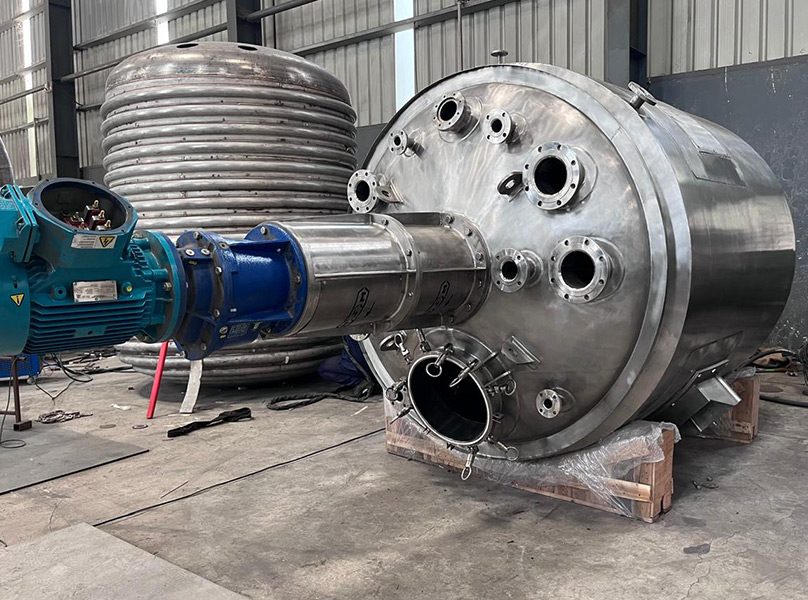

A jacketed reaction vessel consists of a vertical cylindrical shell with standard tori-spherical dished ends. These vessels allow controlled heating or cooling of reactants by circulating a thermal medium through the jacket. Ideal for applications requiring temperature control below 200°C, common heating/cooling media include steam, water, hot oils like Therminol and Dowtherm A.

VSBP™ is a proven manufacturer of jacketed vessels, offering both conventional and dimple jacket designs. These vessels are engineered for efficiency, reliability, and longevity in a wide range of industrial processes.

Advantages of Jacketed Reactors

• Available from 100 to 50,000 Liters
• Available in SS 316, SS 304, CS, and coated variants
• Spiral welds for uniform heating/cooling circulation and added structural strength
• Conforms to ASME and other global standards
• Strict adherence to Argon and Arc welding procedures
• Dimple jacket option available

Special Features

• Energy-saving two-part jacket design for small batches
• GMP-compliant construction for pharmaceutical applications
• Mirror finish (220 grit to 440 grit), flush grinding & S.S. cladding insulation
• Energy-efficient direct drive agitators with optional VFD for RPM control
• Custom agitator designs tailored to viscosity & density of reactants
• Options for foam cutters for high-foaming processes
• Additional services: process automation, valves, and fittings

All vessels are manufactured in facilities approved by leading consultants and third-party inspection (TPI) agencies, ensuring best-in-class quality and compliance.
